Tuesday 13 October 2009

3D Hammer using Illustrator

Output:


Download Source File

Step 1: Create a new document in Illustrator.

Step2: In the tools panel select Rounded Rectangle Tool.



Step 3: Now draw a rounded rectangle on the screen.

Step 4: Select Fill color as white and remove the Stroke color. You can remove the Stroke color by selecting Default Transparency on the Appearance Panel. Now change the Stroke weight to zero.



Step 5: Now left click the rounded rectangle. Click Effects on menu bar and select 3D and select Extrude & Bevel.



Step 6: Select Preview option.
Now change values in the text box,
Rotate on X-axis: 58
Rotate on Y-axis: -76
Rotate on Z-axis: 43

Set Extrude Depth as 346 pt
In Bevel select Complex 2
Select Height as 12 pt



Step 7: Now the rounded rectangle will appear like this,



Step 8: Similarly draw two circles, one circle slightly bigger than the other.
Select the bigger give it dark shade color and remove the stroke color.
Left click on the bigger circle, select Effects -> 3D -> Extrude & Bevel.

Set X-axis rotation: -171
Set Y-axis rotation: -68
Set Z-axis rotation: 1

Extrude Depth: 58 pt
Bevel: None

Step 9: Now select the smaller circle, give it a light color shade and remove the Stroke color.
Left click on the smaller circle, select Effects -> 3D -> Extrude & Bevel.

Set X-axis rotation: -171
Set Y-axis rotation: -68
Set Z-axis rotation: 1

Extrude Depth: 462 pt
Bevel: None

Now the two circles will look like this,



Step 10: Finally align all the pieces to make 3D hammer.
Copyright by : http://www.getw3help.com
Continue Reading...

Obama Logo Tutorial

No matter what you think of his politics, U.S. presidential cantidate Barack Obama has a pretty incredible marketing and design machine behind him. One strong example of this is his “O” logo. Simple, attractive, symbolic, it’s undeniably an effective logo.

Another aspect of the Obama campaign that is attractive to a lot of American’s is the grass-roots, everybody can be involved attitude that they’ve been trying quite successfully to convey. In honor of that attitude, and just in time for the Democratic Convention, I thought I would show some really helpful Illustrator techniques by making the Obama logo. In this tutorial, we’ll be going over the Pathfinder, Envelope Warps, Opacity Masks, and Gradient Meshes. And we’ll use a drop shadow!

What’s that? You don’t think we can do it? I have three words for you my friend.

Yes. We. Can.

Step 1. Get Yourself Ready

I’m working with a 400px by 400px artboard. I’ve set a verticle gradient from #0768A4 to #168ACB. Also, it’s important you’re working in CMYK for this tutorial. I’ll explain later when we get down to the Opacity Masks.

Step 2. Lay the Foundation

Make a 350px by 350px white circle in the middle of your artboard.

Step 3. Lay Another Foundation

Select your cirlce and copy in front (ctrl + f, mac cmd + f) to make a copy in the same position. Size it down to 320px by 320px and apply the same gradient that you have on the background. You’ll want to have the light blue on the bottom of this circle, and push it up past the middle.

Step 4. And a Third Foundation

Now copy in front (ctrl + f, mac cmd + f) again, size the circle down to 175px by 175px, and change the fill to white.

Step 5. Stripes

Now we have to make the gently sloping stripes that represent the bountiful fields of the American mid-west. We start to do this by making five rectangles, alternating red and white. You can start by making one rectangle, then hold down alt (mac option) and drag the shape to make another copy. Line them up, and repeat till you have your five stripes.

Step 6. Bendy Stripes

Now it’s time to get your warp on! Yeah! Hit ctrl + alt + shift + w (mac cmd + option + shift + w) or go to Object>Envelope Distort>Make With Warp… A dialogue box will pop up. Click the preview box, so you can see what you’re doing, and set distortion just the way you like it. I have mine set to Arc, with the bend at 25%, and the horizontal distortion at -50%.

Step 7. Bendy, Stripey Ground

Now you want to size up, rotate, and align your stripes. You want the top of your shape stopping slightly below the halfway mark of your innermost white circle, representing the sunrise of a new day or something. The bottom of the stripes need to cover the bottom of the inner blue circle.

Step 8. Pathfinding

Now we’re going to use an incredibly helpful tool that I’ve used in other tutorial’s. Say hello to the Pathfinder. Select the inner blue circle, copy it in front (ctrl + f, mac cmd + f) and move the copy to the front (ctr + shift + ], mac cmd + shift + ] ). Now select your stripes, expand (Object>Envelope>Expand) and ungroup (ctrl + shift + g, mac cmd + shift + g) them. Finally, select your stripes and the blue circle copy, and hit the crop button in the pathfinder window. You should end up with this:

Now, if you’re the boring type, you could stop right here with a perfectly functional Obama logo. If you’re the adverterous type, why don’t you continue with me?

Step 9. Depth and Shadow

Now you’re going to copy the big white circle from the back, and move it to the front (remember that one? ctrl + shift + ], mac cmd + shift + ] ). Here’s another really great illustrator thing, the gradient mesh. Object>Create Gradient Mesh, then a dialogue window will popup. I set it to 3 columns and three rows. The more detail you want on your gradient, the more rows and columns you should set. For our purposes, 3 is fine.

Now we’re going to begin adding color to individual points on our mesh. Anywhere you want to darken (in my case the bottom left side of the logo) should be assigned darker shades.

In the transparency panel, we’re going to set the blend mode to multiply, and the opacity to 80.

Step 10. The Bright Horizon

Now we have to make the bright glow coming up from beyond the horizon. Any ideas on how to do this? If you said, “Let’s just use a simple white to black gradient with the blend mode set to lighten or screen.” you’d be wrong. Dead wrong.

Because of some problem, which I won’t pretend to understand, with working with CMYK in Illustrator, sometimes you can’t do lighten or screen gradients. Why don’t we just work with RGB then? Because the gradients look cruddy, that’s why.

The solution lies in something called an Opacity Mask. First select your inner blue circle, copy it, and move it to the front. Now set the fill to white and set the blend mode to lighten. While in the transparency panel, open up the more options menu and select Make Opacity Mask. Now with your opacity mask selected, make a rectangle with a white to black gradient fill. Keep in mind, the white area displays fully what’s underneath, and as you’re getting closer to black, it masks more and more.

Step 11. More Practice Masking

Now we need to set up another opacity mask for the “shine” cast by the rising sun. Copy, paste, and move to front The blue circle. Size it down slightly, and align it with the bottom of the original blue circle. Now Copy this circle, but don’t paste it yet. Set the blend mode of the white circle to Screen.

Now create an Opacity Mask on this layer, like you did for your last layer. With the opacity layer selected, paste the circle into it from your clipboard and set the fill to a black to white gradient. Play around with your gradient till you get the effect you want.

Step 12. The Finishing Touch

To finish things off we’re going to add a little dropshadow. Select Effect>Stylize>Drop Shadow, set your settings, and go for it. I have the mode set to Multiply, opacity at 75%, x offset -10px, y offset 10px, and blur to 15px.

Copyright by : http://www.clickpopmedia.com

Continue Reading...

Monday 12 October 2009

Illustrator Tutorial: How to Make an Icy Cocktail

final effect

Do you desire to drink an icy refreshing cocktail on a sunny day? I know I am, so in this tutorial, I will explain how I draw a refreshing cocktail drink in illustrator. Hope you will find this useful and inspiring to make other kinds of drinks or cocktails.

Drawing the Glass Shape

Open a new document, any size, RGB mode. Take the Pen tool and draw the shape that you see in the image below or just draw half of it and then reflect it to be symmetrical, like I did. Fill it with the linear gradient shown. Colors are: (230,230,230) or 10% black; white (255,255,255) and (204,204,204) 20% black.

cocktail drink

Now copy and paste in front this shape. Take the Direct Selection tool and select the upper point of the shape and drag it a bit down like in the image. Make the same with the lower point of the shape. Then fill it with the linear gradient shown using the colors: (191,191,191) or 25% black; white (255,255,255) and (230,230,230) 10% black.

cocktail drink

Next, copy and paste in front of the shape again and make it a little smaller. Fill it with the linear gradient using the colors: (77,77,77) 70% black; white and (51,51,51) 80% black, then set it to Color Burn. We will use this shape again later to make the liquid inside the glass. You should get something like in the image below:

cocktail drink

Drawing the Glass Legs

Now let’s make the ‘leg’ of the glass. Draw the shape from the image below or just half of it and reflect it, then fill it with the gradient shown: (204,204,204) 20% black; (230,230,230) 10% black; white; (242,242,242) 5% black and (153,159,164).

cocktail drink

Drawing the Glass Foot

For the ‘foot’ of the glass take the Ellipse tool and draw the shape that you see in the image and fill it with the linear gradient. Colors I’ve used are: (230,230,230) 10% black; white and (178,178,178) 30% black. To create more depth, copy and paste the shape that we just made, fill it with a darker gray and place it like in the image below. Now, the glass should look like this:

cocktail drink

cocktail drink

Coloring the Drink

It’s time to color the drink. Copy the shape that I said we will use it for this part and fill it the gradient using the colors: (63,98,46); (85,124,62); (168,194,88); (248,211,103) and (251,232,191) or any other colors that you prefer. The original shape, set to Color Burn that we made, has to be on top of this one not the other way.

cocktail drink

Next, draw a simple shape like the one below and fill it with a linear gradient using the orange from above and a darker one. This way we will get the surface of the liquid inside and a more realistic look for the cocktail.

cocktail drink

Drawing the Ice Cubes

Now, we will make the ice cubes. Take the Pencil tool and draw some shapes like the ones below. Fill them with a radial gradient from white to black, set the mode to Screen and lower the opacity for each one of them. You can adjust this later also till you like what you see.

cocktail drink

cocktail drink

Now place them all on top of the glass shape and you should have now something like this:

cocktail drink

Adding in Details for Ice Cubes

We will continue to add some details to the ice cubes. Take the Pencil tool, draw some random shapes and fill them using different shades of orange. If necessary, lower the opacity for each one of them.

cocktail drink

Creating Reflections

We will add some reflections in this step. With the Pen tool draw the shapes from the image below, fill them with a linear gradient using white and a similar green color to the one used for the liquid, then set the mode to multiply and lower the opacity.

cocktail drink

scrcocktail drinkeenshot

Water Fizzles

To make the cocktail look more realistic, I decided to draw some water fizzles on the glass. With the Pen tool draw a shape like the one below or any other shape that will fit on top of the glass later. Copy and paste the shape and fill it with the linear gradient shown using black, white and gray. Place the second shape on top of the first one and go to Transparency panel and select Make opacity mask.

cocktail drink

cocktail drink

Now go to Effects/Pixelate/Mezzotint and select Fine Dots. Place the shape on top of the glass, set the mode to Screen and reduce the opacity till you get the icy effect that you like.

cocktail drink

cocktail drink

Water Droplets Dripping Effect

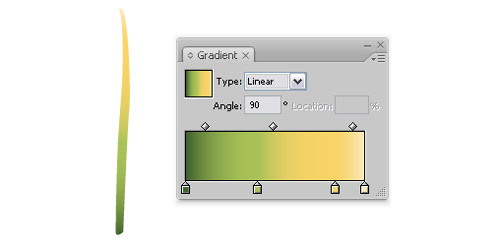

Take the Pen tool and draw a shape like the next one to make the water drop flow. Fill it with a linear gradient using the same colors like the drink inside the glass. Next, go to Effects/Pixelate/Crystallize and set the Cell size to 4, this will make the flow look more natural.

cocktail drink

cocktail drink

Now, place the shape on top of the water fizzles shape made earlier. Set the mode to multiply and lower the opacity.

cocktail drink

Water Droplets

For the water droplets, take the Ellipse tool, draw 3 shapes, color them with (63,98,46) dark green; (179,202,109) light green and white, then place them on top of each other like in the image below. Go to Effects/Stylize/Drop Shadow and set the values like you see in the image and then group them all.

cocktail drink

cocktail drink

Placing the Water Droplets

Place the water drop like in the image and reduce the opacity to 25%. Copy one more water droplet and made it smaller to get a more realistic look.

cocktail drink

We are done with this part and the cocktail should now look like the image below.

cocktail drink

Drawing the Straw

It’s time to draw the cocktail accessories. With the Pen tool draw a shape like a straw. Fill it with white and a 0.5px light gray stroke.

cocktail drink

With the Rectangle tool draw a small rectangle, fill it with green or other color that you prefer and drag it to the Brushes panel. Then I made the orange rectangle, we will need this one later for the second straw.

screenshot

Next, draw a path with the Pen tool following the straw shape and stroke it using the green brush that we just made. Place it on top of the other one and make an Opacity mask. Copy the straw shape, select the path with the green stroke, double click the black square that you see in the image and paste the straw shape that we copied, then exit the mask mode. You should get something like in the image below.

cocktail drink

cocktail drink

Now make another Opacity mask so the bottom of the straw looks more transparent when we will place it in the glass. You can adjust the mask later if needed.

cocktail drink

Make the second straw like we did the green one. Then place them on top of the glass and adjust the Opacity mask for both of them to look realistic. I got something like this:

cocktail drink

cocktail drink

Drawing the Umbrella Stem

We will make the little umbrella for our cocktail. Use the brush from the Library that you see in the image, Expand appearance and fill it with a light brown. Copy and paste this shape, then delete the points except the 3 ones from the tip to make the little shape from the image. Copy and make 8 shapes that we will use later.

cocktail drink

Drawing the Umbrella

Using the Pen tool draw a shape like the one below and fill it with a linear gradient using 2 green colors or other colors that you prefer. Draw some lines starting from the top and color them using a light and a dark green like in the image below.

cocktail drink

Next, place the 8 shapes that we made earlier and draw with the Pen tool the little shape on top. The flower I used is from the Symbols Library and I set it to multiply. The umbrella is ready and should look like this:

cocktail drink

Cocktail Stirrer

Next using the Ellipse tool and the Rounded Rectangle tool draw the cocktail stirrer. Fill them with a linear gradient. The colors that I have used are (244,237,203) and (244,187,58).

cocktail drink

Final Cocktail

The final cocktail image is done. The final image of the cocktail looks like this:

cocktail drink

Hope you have enjoyed this cocktail tutorial and find it useful and refreshing.

Copyright by : vectordiary.com
